Standard Sizes Available

We supply both molded and machined PTFE parts. Custom sizes to match competitor styles are available. Please specify I.D. / O.D. and stack height desired when ordering.

Read more

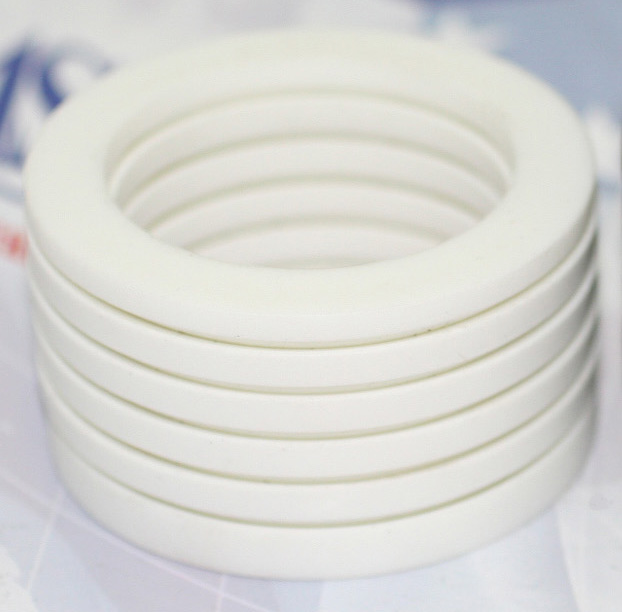

PTFE Packing

PTFE V-Packings

By American Seal and Packing

Are Exceptional in Chemical Applications, Cyrogenic applications, Clean service (FDA) applications. Because PTFE has the lowest coeffiecient of friction, it lowers stem drag allowing valves to turn easier.

Read more

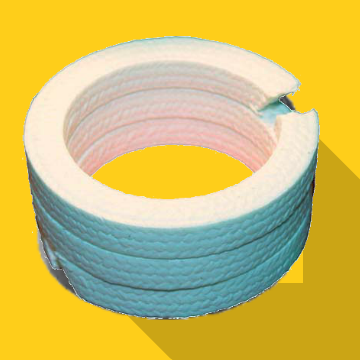

Compression PTFE Packing

Valve Stem Packing

Original Virgin PTFE Resin

Soft expanded PTFE, easy to install, chemically inert, will not age, FDA suitable, adds service life to old worn valves by conforming to pitted or worn surfaces.

Read more
Valve Stem Packing

What We Do?

American Seal & Packing supplies die formed packings pre-cut and pre-densified, sized to your dimensions.

Ameri-Tef Pump Packing

Ameri-Tef Pump Packing

Ameri-Tef is PTFE Packing which is applicable to a wide range of aplications. AmeriTef (PTFE) is used in the sealing pumps, valves, valves, etc..

Ameri-lon Pump Packing

Ameri-lon Pump Packing

Ameri-lon packing is tough and durable, self-lubricant, heat and chemical resistant. It also has good thermal conductivity and very low friction factor.

Die Formed Packing

Die Formed Packing

American Seal & Packing supplies die formed packings pre-cut and pre-densified, sized to your dimensions.

PTFE Valve Stem Packing

PTFE Valve Steam packing; Ideal for food grade and chemical processing applications. |PTFE Pump Packing | Buy Online PTFE Packing

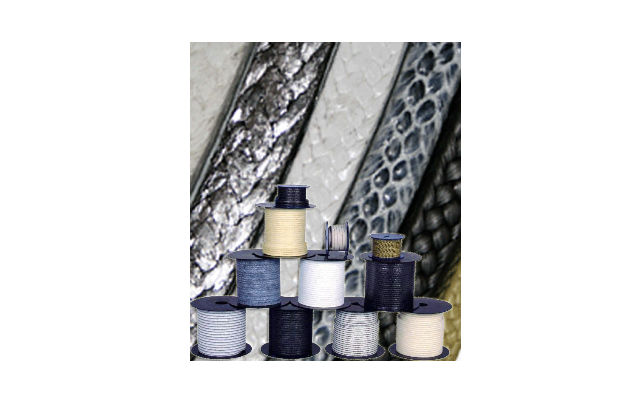

Assorted Packing

Assorted Packing

Assorted packing is used during festivalseason to lure customers. . This packaging contains different category ofproduct in one display box ,gift box, etc..PTFE Pump Packing | Buy Online PTFE Packing

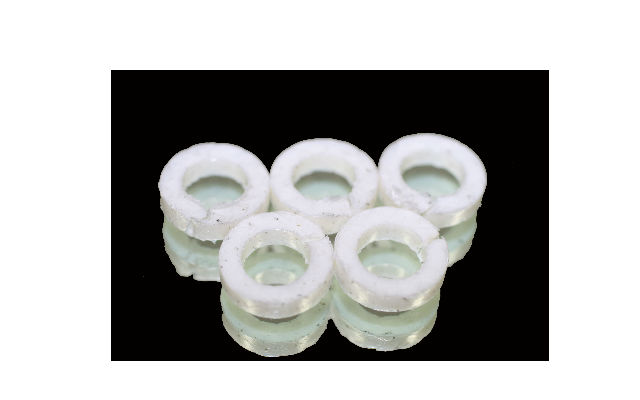

Die Formed PTFE

Die Formed PTFE

Die formed graphite packing ring is made of pure flexible graphite. Die forming or the Pre Compression Of Packing Rings allows them to ... We provide quality dieforming, including PTFE wrapped ends, or wax dipped ends | PTFE Pump Packing | Buy Online PTFE Packing

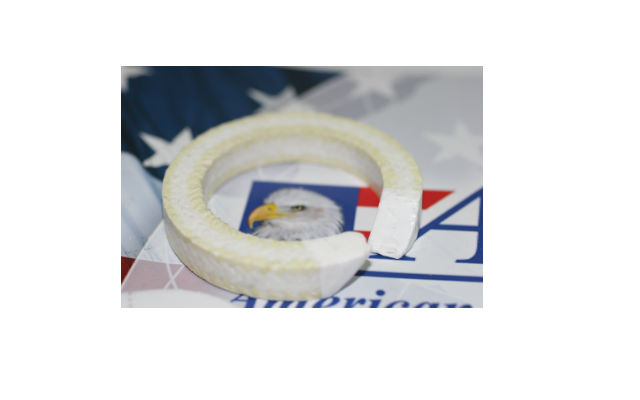

Die Formed PTFE Kevlar Packing

Die Formed PTFE Kevlar Packing

Kevlar® has the highest tensile strength of any fiber and possesses excellent resistance to high temperature and chemicals. Kevlar is an excellent packing for reciprocating pumps. | PTFE Pump Packing | Buy Online PTFE Packing

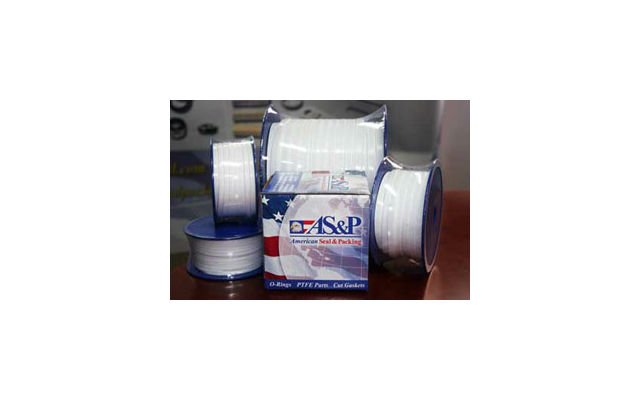

EPTFE Joint Sealant

EPTFE Joint Sealant

Expanded PTFE (EPTFE) Joint sealant is a soft conformable product that is clean and compatible with 99% of chemicals (except molten alkali metals. |PTFE Pump Packing | Buy Online PTFE Packing

Joint Sealant Seal

PTFE Strip

PTFE Strip is manufactured exclusively in our American Seal and Packing (AS&P) factory. | PTFE Pump Packing | Buy Online PTFE Packing

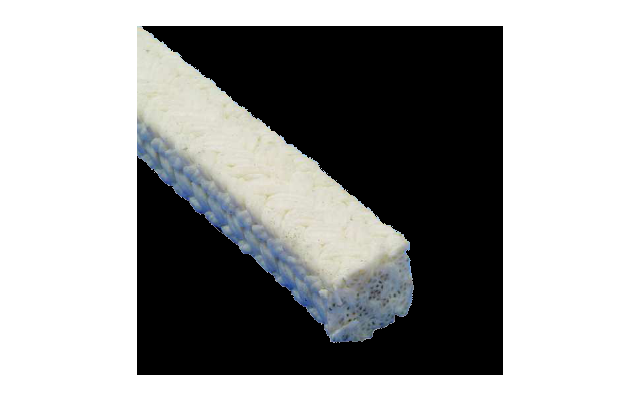

Non asbestos PTFE Coated

Non asbestos PTFE Coated

non-asbestos PTFE coated Packing which is applicable to a wide range of aplications. 612 is a non-asbestos PTFE coated Packing which is applicable to a wide range of applications | PTFE Pump Packing | Buy Online PTFE Packing

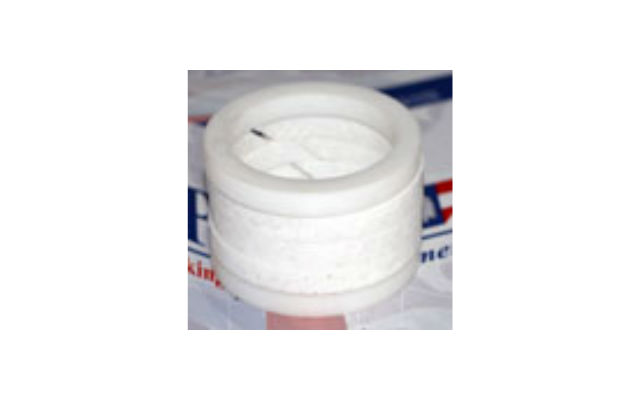

PTFE Die Formed Packing

PTFE Die Formed Packing

American Seal & Packing supplies die formed packings pre-cut and pre-densified, sized to ... Standard Die formed packing styles. We can die form rings for your pump or valve from any of these packing styles. Standard Die formed packing styles: PTFE. Carbon Yarn. G.F.O |PTFE Pump Packing | Buy Online PTFE Packing

PTFE Stem Packing

PTFE Stem Packing

PTFE valve stem packing is a self forming packing material. It forms to all surface irregularities such as scratches and pits. |PTFE Pump Packing | Buy Online PTFE Packing

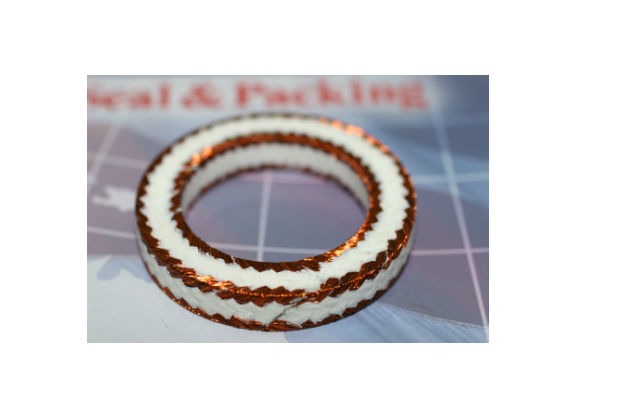

PTFE Brass Packing

PTFE Brass Packing

BrassCraft PTFE Coated Stem and Valve Packing PTFE Coated Stem and Valve Packing Fits Faucet Brands/Models: Multi-fit Type: Bonnet packing. |PTFE Pump Packing | Buy Online PTFE Packing

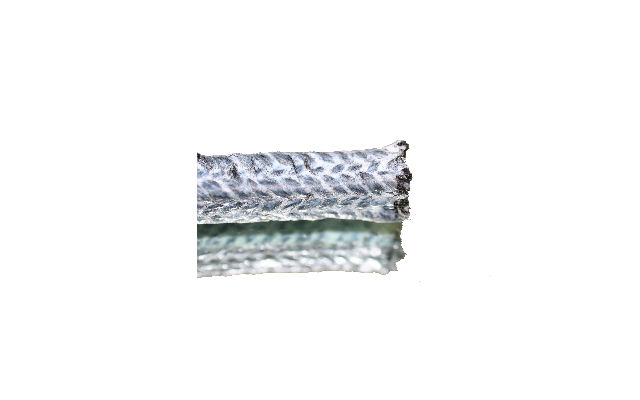

PTFE Coated Carbon Packing

PTFE Coated Carbon Packing

PTFE-Coated Carbonized Fiber Coil packing made of carbon fiberyarn covered with PTFE film, braided into square cross-section and finished with PTFE |PTFE Pump Packing | Buy Online PTFE Packing

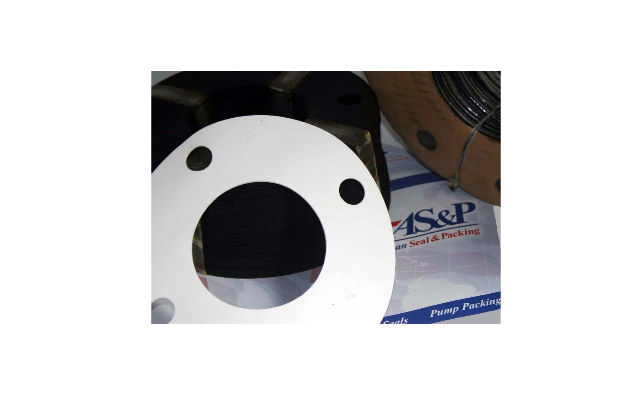

PTFE Full Face Flange Gaskets

PTFE Full Face Flange Gaskets

Expanded PTFE Flange Gasket, Full Face, White, Fits Class 150 Flange: Industrial Gaskets: Amazon.com: Industrial & Scientific. |PTFE Pump Packing | Buy Online PTFE Packing

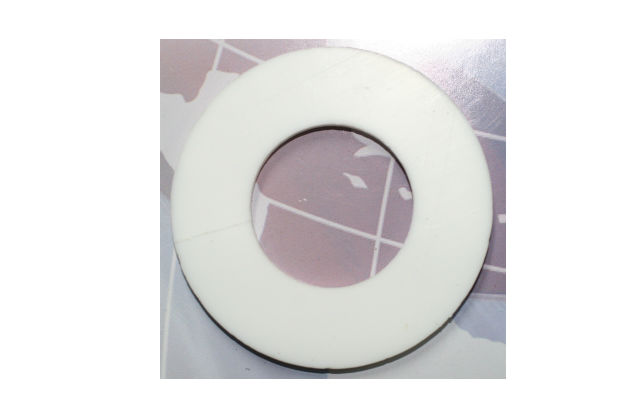

PTFE Gasket

PTFE Gasket

PTFE sheet gasket material comes in several forms. The first thing that must be determined is what type of PTFE gasket material your looking for. | PTFE Pump Packing | Buy Online PTFE Packing

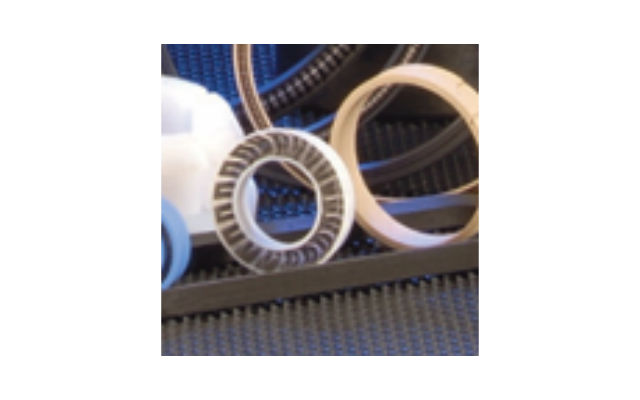

PTFE Lip Seals

PTFE Lip Seals

PTFE lip seals are formed or machined from wear resistant PTFE/Teflon composites for long life, low friction, high surface speeds. | PTFE Pump Packing | Buy Online PTFE Packing

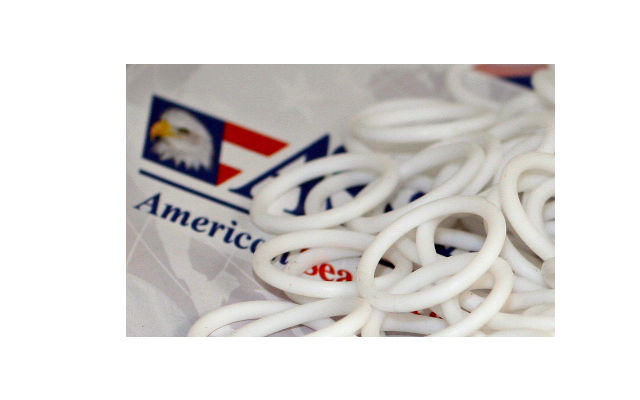

PTFE O-Rings

PTFE O-Rings

PTFE O-Rings have an excellent resistance to almost all chemicals including acids, bases, oils, steam and many other chemicals. |PTFE Pump Packing | Buy Online PTFE Packing

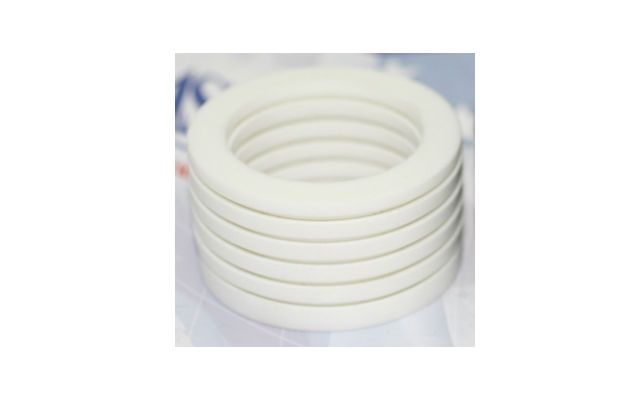

PTFE V-Packing

PTFE V-Packing

PTFE Valve Steam packing

Made with various Elastomers, and PTFE based materials: V-packing, also called vee packing, chevron packing, and parachute packing, is used in Pumps |PTFE Pump Packing | Buy Online PTFE Packing

American Seal and Packing

American Seal and Packing is a leading manufacturer & distributor of mechanical seals, Grafoil, gasket material, cut gaskets and quality o-rings providing innovative solutions to mechanical seal problems.

American Seal and Packing

Our Team

AS&P

American Seal and Packing is a leading manufacturer & distributor of mechanical seals, Grafoil, gasket material, gaskets and o-rings.

team 1

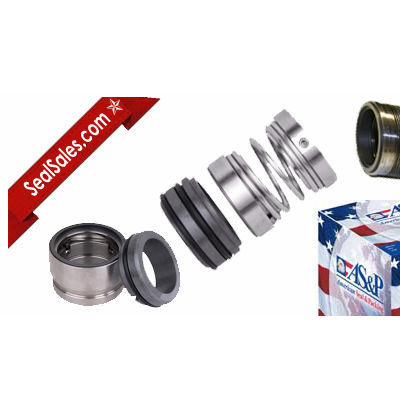

SealSales.com

Sealsales.com

SealSales.com carry high quality market seals to suit all types and Gaskets Materials, like PTFE, Single Spring Seals.

team 1

Our Company

Ptfepacking.net

Ptfepacking.net is owned and operated by American Seal & Packing a Division of Steadman & Associates, Inc.

About Us

American Seal and Packing is a leading manufacturer & distributor of mechanical seals, Grafoil, gasket material, cut gaskets and quality o-rings providing innovative solutions to mechanical seal problems. We're finding better ways to serve our customers all the time. In addition to our expanding line of industrial mechanical seals, we're updating and upgrading this web site to provide you more information about our company and our products.

Our Special

  • Mechanical Seals

  • Gaskets

  • Mechanical Seal Repairing

  • Products Quality

AS&P

American Seal & Packing is attempting to provide more useful information to those in need of specifics on what materials will work for their applications. We are building and adding information daily.

Packing Tool Sets: All Type of Packing Tool Set Available Here

Purchase now

Customer Testimonials

Our Customers said about our Company Products & Customer Support & Shipping.

"I found American Seal and Packing when looking for buy quality mechanical seals. These mechanical seals are more cost effective. I specifically like the personal attention provided to me, and the active involvement in solving mechanical seal repair."

John Doe Customer

"Thank you for the great customer service! We only wish we knew about American Seal and Packing an year ago."

Williams Customer

"The types of mechanical seals for pump that we require, range from basic single spring types to all spring types. AS&P has provided us with excellent technical expertise, fast response, and very competitive pricing."

Joe Richard Customer

"Perfection is Achieved Not When There Is Nothing More to Add, But When There Is Nothing Left to Take Away"

What is PTFE?

We are often asked "just what is PTFE". PTFE is a product we are all familiar with, just not by that name. PTFE stands for PolyTetraFluoroEthylene, which is the chemical termfor the polymer (CF2)n.Polytetrafluoroethylene (PTFE), (DuPont's trademark of Teflon®) is a thermoplastic member of the fluoropolymer family of plastics. PTFE has a low coefficient of friction (it is very slick) ,has excellent insulating properties, and is chemically inert to most chemicals. It also can withstand high heat (to 500 F) applications and it is well known for its anti-stick properties.

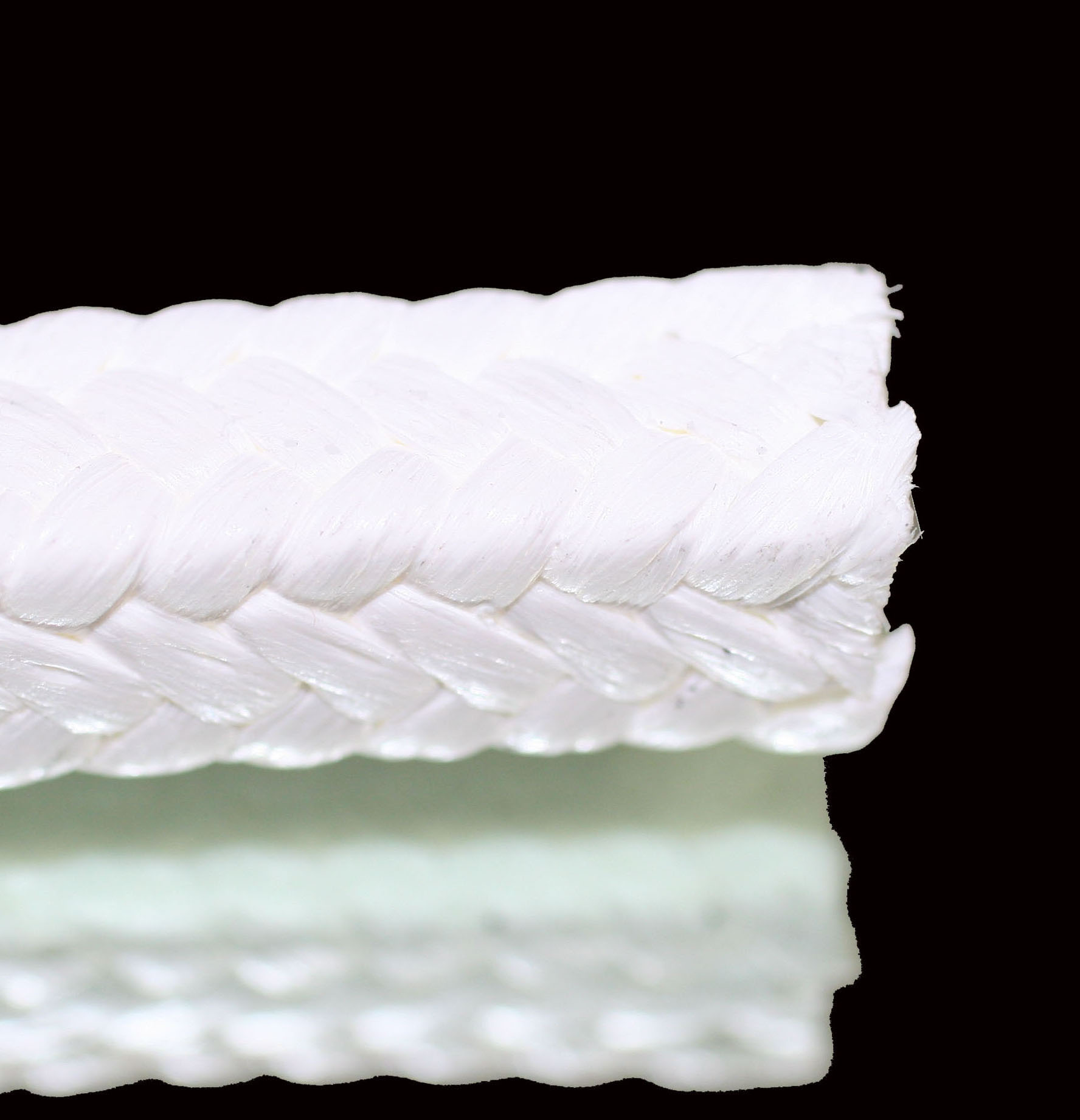

PTFE Packing

PTFE Packing alone as a term refers to Gasketing, braided packing, even an o-ring. A packing is simply a product that is used to block the path of a leak. So when someone asks for PTFE packing our first question is "what type". Most commonly the term has become an abbreviation for PTFE Pump or valve packing.

The next question is "is this for food or potable water"… Does it need to meet FDA specifications? The reason is most PTFE packings have some sort of lubrication added to them to help prevent them from burning up on pump start up. PTFE packings are particularly vulnerable to friction on startup because they expand from heat (including heat generated by friction) at a greater rate than metal. As a result, if the packing does not break in properly (or was over tightened) it will not seal properly, and will not last. The lubrication used on most braided packing's is generally mineral oil (because it's cheap). If your packing is going to be FDA approved a food grade silicone lubricant is used in place of the mineral oil.

How is it braided?

The method of braiding will define how soft a packing feels. A looser braid like a square braid will make the packing better suited to radially expand under compression, making it a better choice for older, worn pumps. An interlaced braid is much tighter, making the packing denser with fewer leak paths through the braid. These denser packing's will seal higher pressures so they work well in new pumps and valves. We also offer various hard and expanded (soft) PTFE yarn versions.

PTFE packing is utilized in a really broad range of applications. Often, customers simply request PTFE packing. In which case our general service Ameri-Tef (style 620) will be supplied http://www.aspseal.com/ameri-tef.html . As long as the customer is not using it for FDA required applications it will likely do an excellent job.

PTFE is often combined with other materials such as graphite, to improve the lubricity and minimize the cold flow often associated with PTFE product. Our Ameri-lon packing is an excellent example of this.

Ameri-lon has superior resistance to abrasive service applications. It has become a favorite style with waste water treatment facilities for it's resistance to abrasion. PTFE is also often combined with Kevlar, for reciprocating pump applications, copper wire, to act as a scrapper while it seals in polish rod applications, and other materials http://www.aspseal.com/pumppacking.html (linzing, nomex, novaloid, etc.). For Mixer application internal rubber cords or a core of rubber are added to give the packing recovery from high run-out mixer applications. There are many different types of braided packing available in the market. The staff at American Seal & Packing will be happy to assist you with a recommendation.

Of course not all applications require a PTFE based braided packing. Vee Packing is an excellent way to seal Valves and reciprocating pumps in low to high pressure applications.

Gaskets of all shapes and sizes can be made of PTFE or PTFE based materials. Our Ameri-lon gasket materials are engineered to overcome the issues of cold flow and inconsistent tensile strength. Made with Dupont's HS10 process the Ameri-lon line is not made by skiving billets as most manufacturers do. The reason is this process causes a high tensile strength in one direction but not in the other. Our Ameri-lon has an even tensile strength. Combine that with barium Sulfate, Silica or glass sphere filler and you have a problem solving gasket material.

Expanded PTFE (EPTFE) is available in sheet, cut gaskets and rolls of Joint sealant. All excellent choices when a soft clean gasket is required. Each version has the normal 0-14 ph and wide temperature range (-450 F to +500 F) range but joint sealant is an effective way to cut waste, and make installation easy with the adhesive backing, peel and stick.

PTFE is known for its ability to reduce friction. It provides better lifetime value, return on investment and durability. PTFE is slippery which allows it to reduce friction to minimum. The tendency of PTFE makes it an energy efficient choice for industries to save power consumption in pumps and also keep heat generation under control when in operation.

The biggest advantage of using PTFE is that it has an exceptionally high resistance to chemical components. They can easily withstand even when continuously exposed to highly aggressive fluids. Users can use them conveniently in scenarios which involves, acids, and bases without the fear of breaking the seal. They can also be used with items like concentrated sulfuric acid, nitric and chlorine dioxide. When there is a requirement to transfer content that includes such acids, obviously PTFE packing is the best fit for the scenario which will ensure prompt delivery.

Regardless of your application, if you have a need for PTFE, American Seal & Packing has a solution for you.
